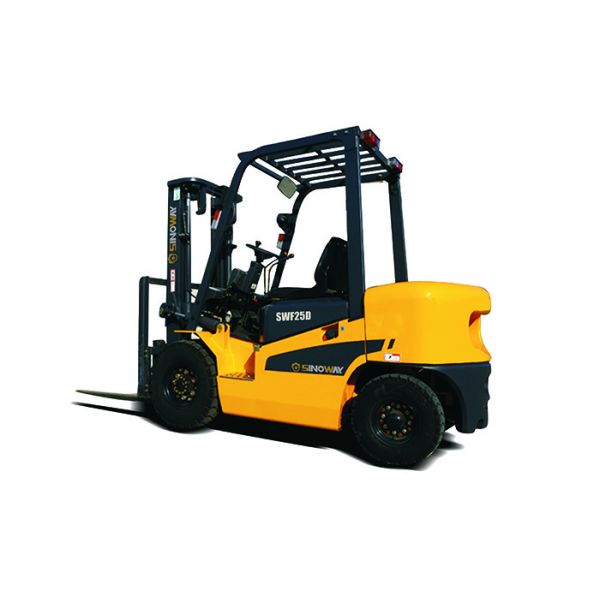

Name: SWF25D Hydraulic Material Handler 980mm Width With Manual Transmission
Brand: SINOWAY
Price: 1 USD

Brand Name : SINOWAY

Model Number : SWF25D

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 unit

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 500 units per year

Delivery Time : 30 days

Packaging Details : Nude

Product Name : Diesel Forklift

Engine model : ISUZU

Rated power : 34.5KW/2500rpm

Tyre size (front/rear) : 7.00-12-12PR/6.00-9-10PR

Tread width : 970mm/980mm

Max. Torque : 137.7N.m/1800rpm

Contact Now

Hydraulic Material Handler 2.5ton Diesel Forklift With Manual Transmission

Engine model	ISUZU
Rated power	35.4kw / 2500rpm
Max. Torque	137.7N.m/1800rpm
Displacement	2.369L
Base capacity(rated load center)	2500kg
Load center	500mm
Service weight (unloaded)	3540kg
Front axle load (loaded / unloaded)	5320kg/1400kg
Rear axle load (loaded / unloaded)	720kg/2140kg
Wheels (front/rear)	2/2
Wheelbase	1650mm
Tyre size (front/rear)	7.00-12-12PR/6.00-9-10PR
Tread width	970mm/980mm
Max. Fork height (with std. 2-stage mast)	3000mm
Free lift (with std. 2-stage mast)	145mm
Height, upright lowered (with std. 2-stage mast)	2070mm
Height, upright extended (with std. 2-stage mast)	4025mm
Mast tilt, fwd/back (with std. 2-stage mast)	6°/12°
Carriage width	1040mm
Fork spread (minimum/maximum)	222mm/1010mm
Fork dimensions (T x W x L)	45 x 100 x 1070mm
Length to fork face (with std. 2-stage mast)	2600mm
Overall width	1150mm
Overhead guard height	2100mm
Turning radius (minimum outside)	2190mm
Fork overhang (with std. 2-stage mast)	457mm
Ground clearance (minimum loaded/center of wheelbase	120mm/140mm
Travel speed (loaded/unloaded)	19/20km/h
Lift speed (loaded/unloaded)	0.46/0.50m/s
Lower speed (loaded/unloaded)	0.55/0.4m/s
Max. Draw-bar pull (loaded)	1600kg
Max. Gradeability (loaded/unloaded)	18%/20%
Service brake	Foot/Hydraulic
Parking service	Hand/Mechanical

SWF25D Hydraulic Material Handler 980mm Width With Manual Transmission
